| Code | Description |
|---|---|
| PCDBS12EW | Single, 2 way switch, edge rocker |
| PCDBS42WW | Double, 2 way switch, wide rocker |
| PCDBS43EW | Triple, 2 way switch, edge rocker |
| PCDBS13EW | Intermediate Switch |

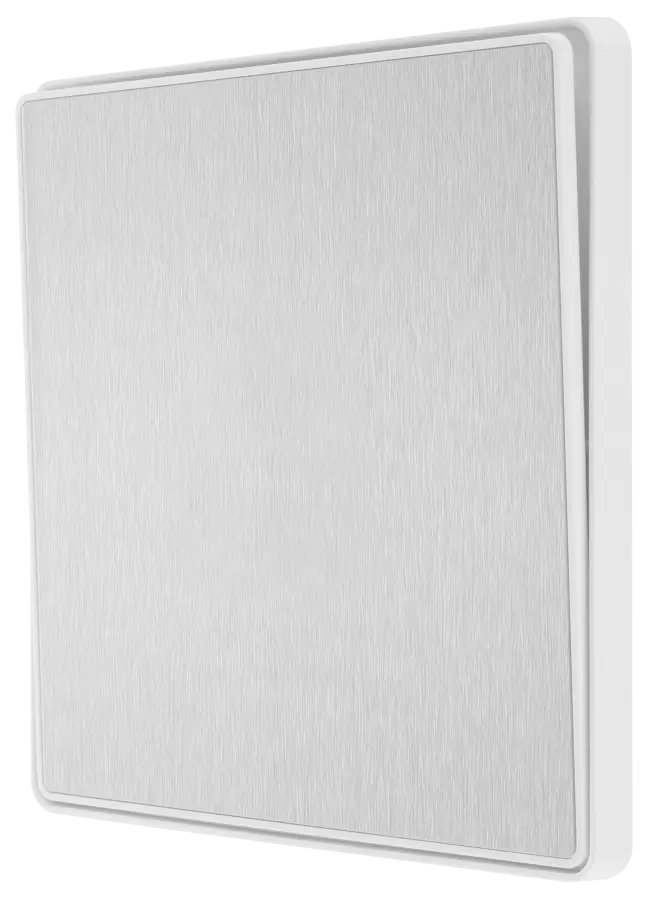

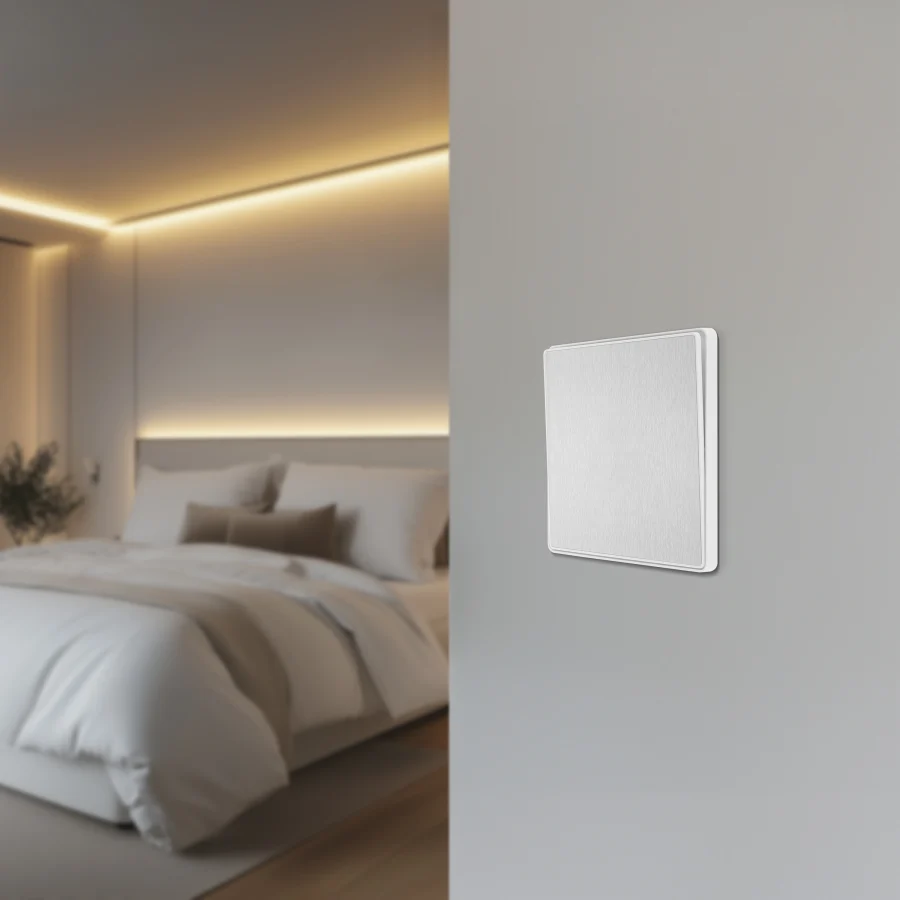

This Evolve 20A single light switch from BG will operate one light in a room. The 2 way switch lets a second switch be added to the circuit, allowing the customer to operate the same light from another location, e.g. either side of a room, or top and bottom of the stairs. The low profile edge-to-edge rocker clips in to place once the base is installed for a screwless appearance, with a large touch surface for easy operation and brushed steel finish. Installation is fast and secure with clearly labelled captive backed out terminal screws. The switch is certified to BS60669-1 standards, and comes with a 25-year guarantee for total peace of mind. BG’s Evolve range of wiring accessories is available in a variety of colours and finishes to give you greater choice and flexibility when choosing electrical accessories.
20A 16AX Rated
Easy to install, supplied with fixing screws and installation instructions
2 way switching allows for a second switch position in a circuit

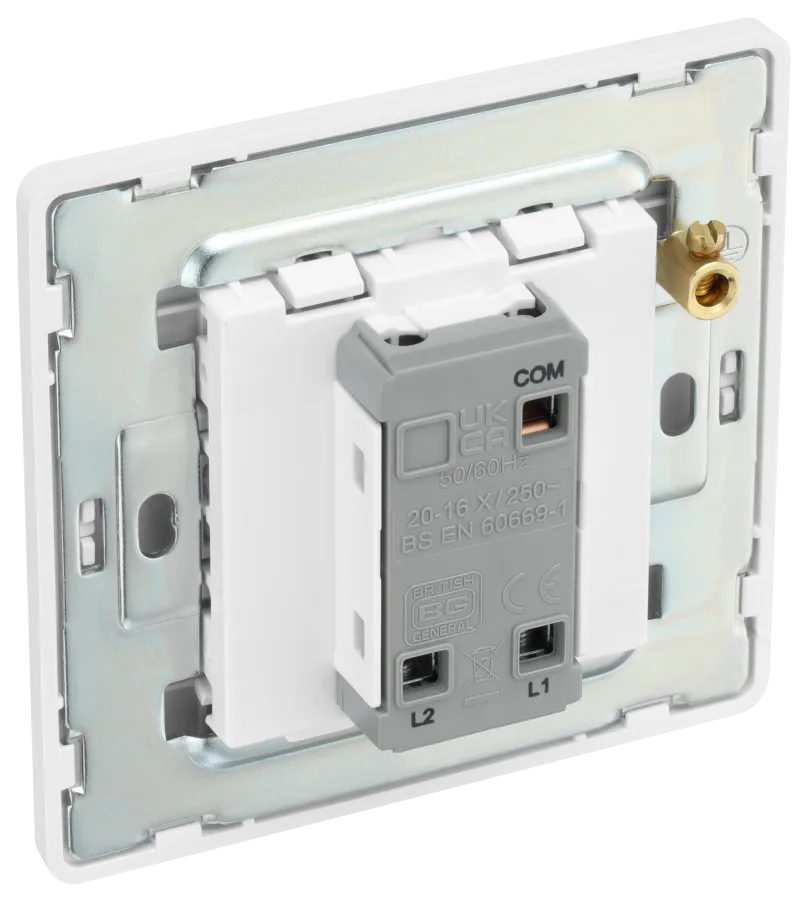

Captive backed out terminal screws for fast installation and to prevent screw loss
Screwless rocker clips on and off easily ideal for redecorating
Edge to edge switch for a larger touch point and contemporary appearance

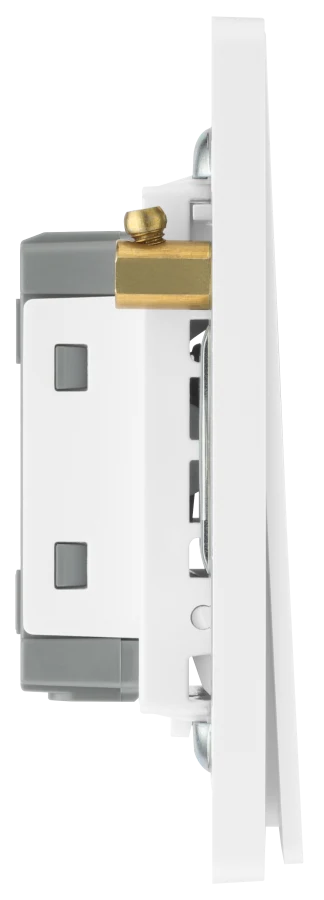

Earth terminal on mounting plate
Minimum mounting box depth 25mm
Certified to BS60669-1
ASTA Licence number 1010
- PartNum
- PCDBS12EW-01
- Backed-out Terminal Screws
- Yes
- Anti-fingerprint Lacquer
- No
- Terminals with Colour Coding Print
- No
- Switch Style Type
- Rocker
- Fixing Centres (mm)
- W-60.3
- Switch State
- On/Off
- General Colour
- Brushed Steel
- Minimum Box Depth (mm)
- 25
- Anti-microbial Property
- No
- Number of Switches
- 1
- Switch Type (Ways & Poles)
- Two Way
- IP Rating
- IP20
- Captive Terminal Screws
- Yes
- Terminal Capacity (mm²)
- 2 x 2.5mm², 4 x 1.0mm², 1 x 4mm²
- Fixing Screws Supplied
- Yes
- Screw Caps
- No
- Switch Location Position
- Wall
- Operating Voltage (V)
- 220-240
- Package Pack Type
- Eco Blister
- Packed Height (mm)
- 153
- Packed Gross Weight (kg)
- 0.125
- Package Hanging
- Yes
- Packed Width (mm)
- 120
- Package EAN
- 5050765264389
- Packed Depth (mm)
- 34
- Inner Pack Type
- Roll Printed Box
- Inner Height (mm)
- 127
- Inner Gross Weight (kg)
- 0.691
- Inner Quantity
- 5
- Inner Width (mm)
- 117
- Inner EAN
- 5050765264501
- Inner Depth (mm)
- 207
- Outer Pack Type
- Roll Printed Box
- Outer Height (mm)
- 219
- Outer Gross Weight (kg)
- 6.957
- Outer Quantity
- 50
- Outer Width (mm)
- 262
- Outer CBM (cu.m)
- 0.03425
- Outer EAN
- 5050765264662
- Outer Depth (mm)
- 597
- Container Quantity 20ft
- 40900
- Pallet Ti
- 8
- Container Quantity 40ft
- 81750
- Pallet Hi
- 5
- Container Quantity 40ft HC
- 93450
Warranty (years) 25
