| Code | Description |
|---|---|
| FBS31 | 20A, double pole, with indicator |

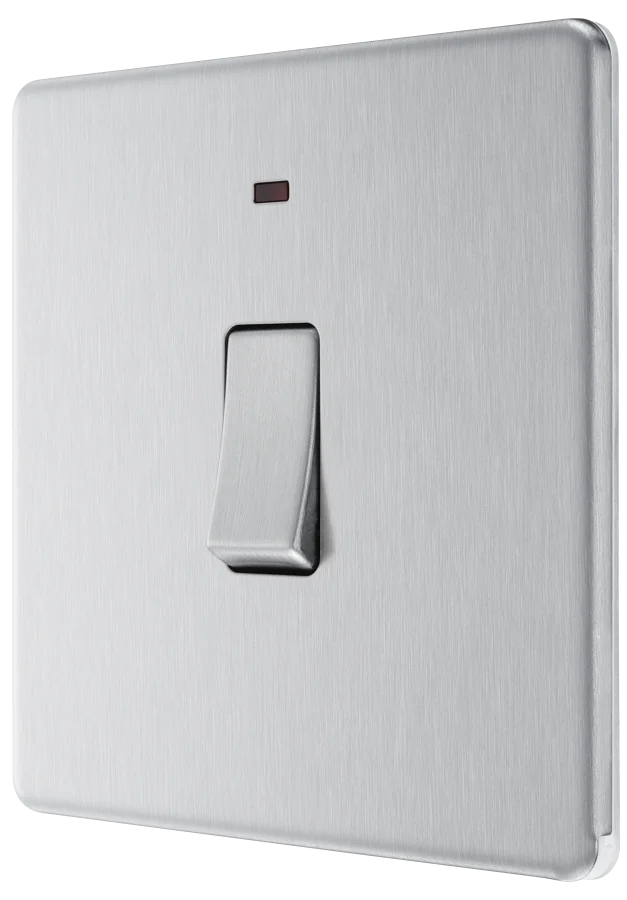

This Screwless Flat plate brushed steel finish 20A double pole switch with indicator from British General has been designed for the connection of refrigerators water heaters, central heating boilers and many other fixed appliances. This switch has a screwless flat plate with an anti-fingerprint lacquer that clips on and off and sits flush against the wall, making it ideal for modern interiors.
20A Rated
Easy to install, supplied with fixing screws and installation instructions
Double Pole switching for the peace of mind of a safer installation

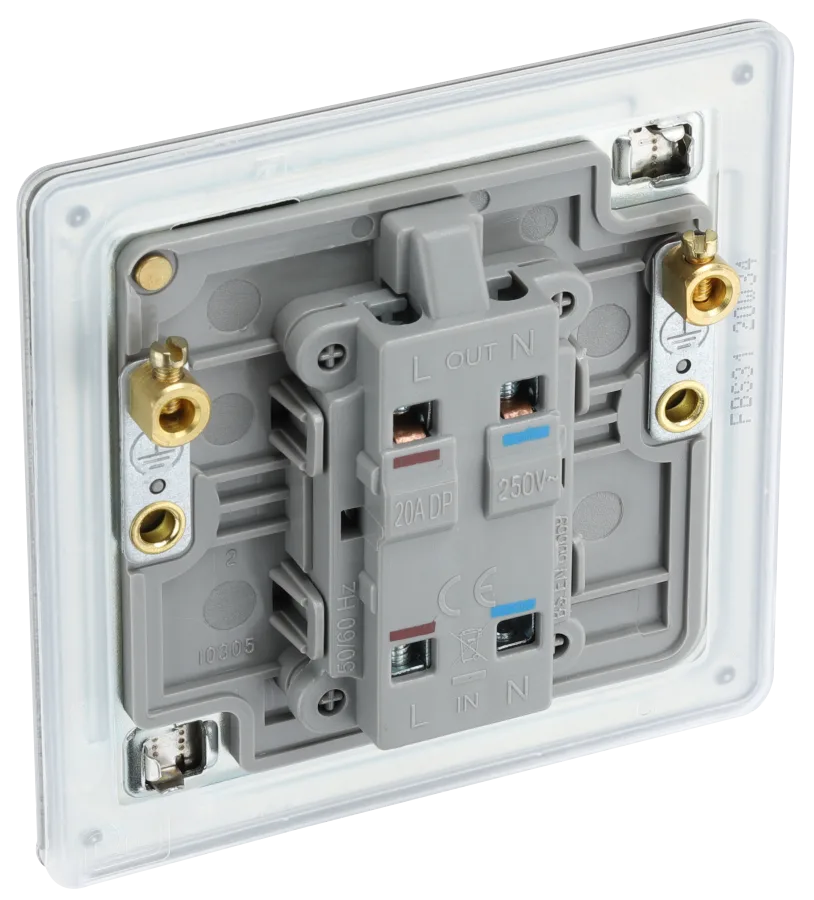

Colour coded terminals for easy identification
Captive, backed out terminal screws for fast installation and to prevent screw loss
Flush LED power indicator
Screwless front plate clips on and off easily and has a sleek, flat profile with rounded edges
Moisture control gasket, prevents tarnishing from new plaster
Minimum mounting box depth 25mm
- PartNum
- FBS31-01
- Backed-out Terminal Screws
- Yes
- Anti-fingerprint Lacquer
- Yes
- Terminal Arrangement
- N/A
- Screw Caps
- No
- Switch Location Position
- Wall
- Operating Voltage (V)
- 220-240
- General Colour
- Brushed Steel
- Minimum Box Depth (mm)
- 25
- Anti-microbial Property
- No
- Terminals with Colour Coding Print
- Yes
- Switch Style Type
- Rocker
- Fixing Centres (mm)
- W-60.3
- Switch State
- On/Off
- Captive Terminal Screws
- Yes
- Terminal Capacity (mm²)
- 2 × 2.5mm², 1 × 4mm², 1 × 6mm²
- Fixing Screws Supplied
- Yes
- Number of Switches
- 1
- Switch Type (Ways & Poles)
- Double Pole
- IP Rating
- IP20
- Package Pack Type
- Eco Blister
- Packed Height (mm)
- 153
- Packed Gross Weight (kg)
- 0.141
- Package Hanging
- Yes
- Packed Width (mm)
- 120
- Package EAN
- 5050765006309
- Packed Depth (mm)
- 27
Inner
- Inner Pack Type
- Roll Printed Box
- Inner Height (mm)
- 127
- Inner Gross Weight (kg)
- 0.758
- Inner Quantity
- 5
- Inner Width (mm)
- 92
- Inner EAN
- 5050765162722
- Inner Depth (mm)
- 207
Outer
- Outer Pack Type
- Roll Printed Box
- Outer Height (mm)
- 219
- Outer Gross Weight (kg)
- 7.896
- Outer Quantity
- 50
- Outer Width (mm)
- 131.5
- Outer CBM (cu.m)
- 0.01362
- Outer EAN
- 5050765152303
- Outer Depth (mm)
- 473
Container
- Container Quantity 20ft
- 102800
- Pallet Ti
- 18
- Container Quantity 40ft
- 205600
- Pallet Hi
- 5
- Container Quantity 40ft HC
- 234950
Warranty (years) 25
Technical Line Drawing
