| Code | Description |
|---|---|
| PCDBS12WW | Single, 2 way switch, wide rocker |
| PCDBS42WW | Double, 2 way switch, wide rocker |

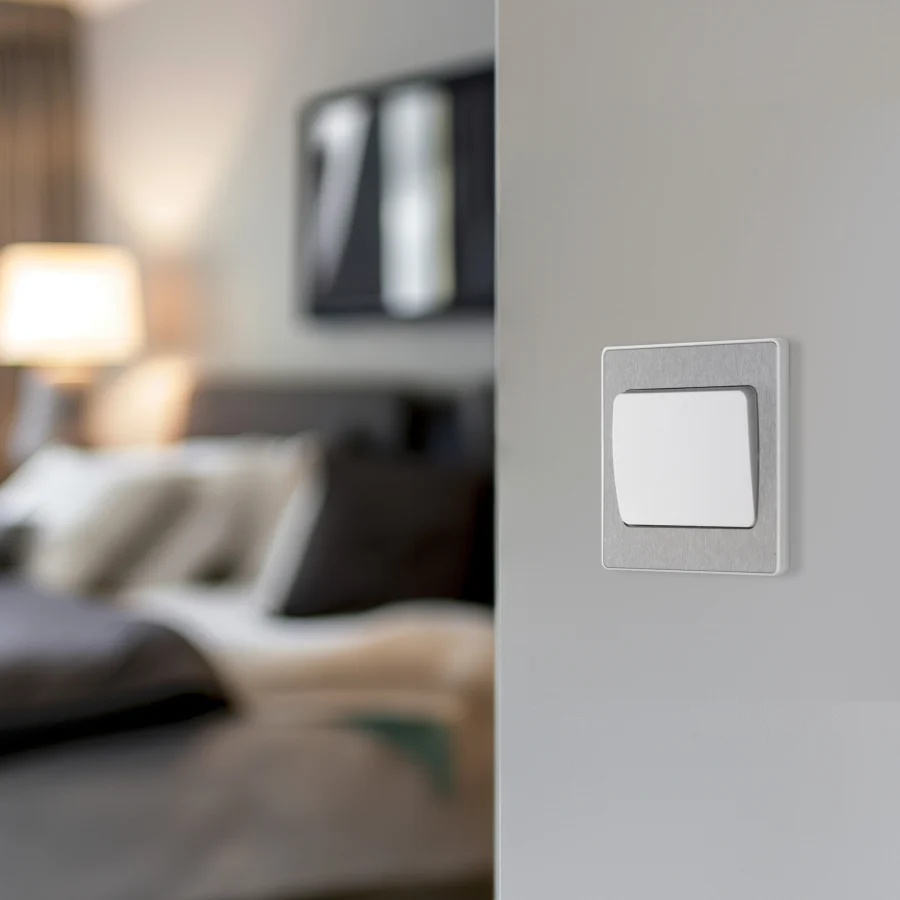

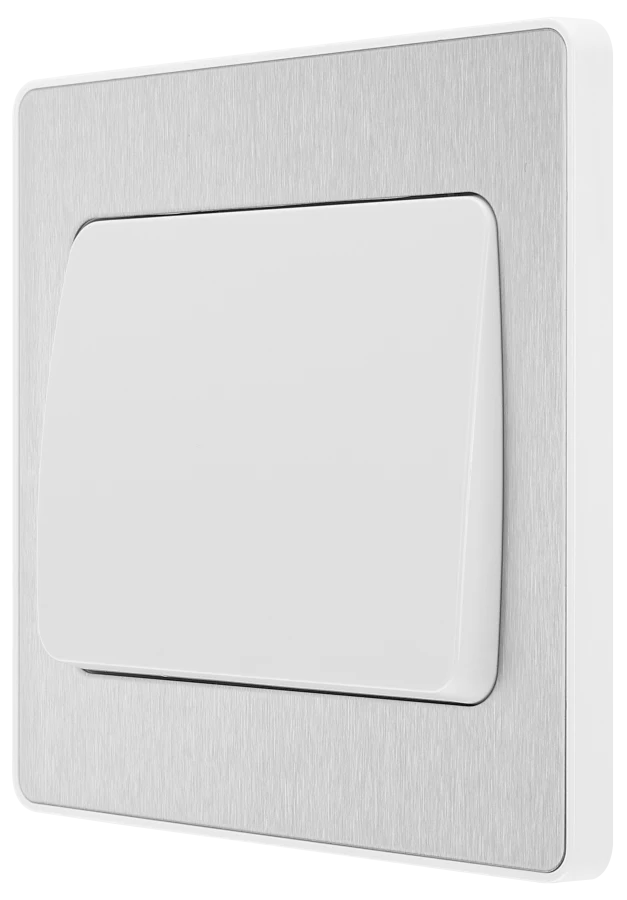

This Evolve Brushed Steel 20A 16AX single light switch from British General will operate one light in a room. The 2 way switching allows a second switch to be added to the circuit to operate the same light from another location (e.g. at the top and bottom of the stairs). This switch has a wide rocker and a low profile screwless flat plate that clips on and off, making it ideal for modern interiors.
20A 16AX Rated
Easy to install, supplied with fixing screws and installation instructions
2 way switching allows for a second switch position in a circuit

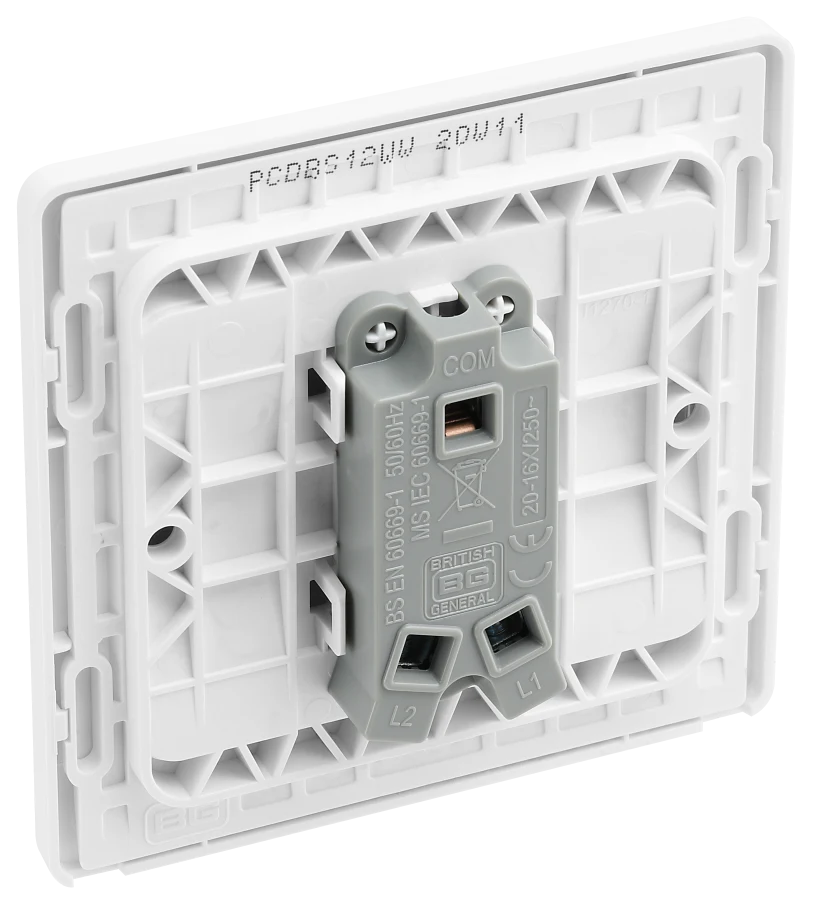

Captive backed out terminal screws for fast installation and to prevent screw loss
Screwless front plate clips on and off easily ideal for redecorating
Wide rocker switch - large touch point for ease of operation
No earth terminal required, making this an ideal decorative solution for older homes where no earth wiring is present
Minimum mounting box depth 25mm
Certified to BS60669-1
ASTA Licence number 1010
- PartNum
- PCDBS12WW-01
- Backed-out Terminal Screws
- Yes
- Anti-fingerprint Lacquer
- No
- Terminal Arrangement
- N/A
- Screw Caps
- No
- Switch Location Position
- Wall
- Operating Voltage (V)
- 220-240
- General Colour
- Brushed Steel
- Minimum Box Depth (mm)
- 25
- Anti-microbial Property
- No
- Terminals with Colour Coding Print
- No
- Switch Style Type
- Rocker
- Fixing Centres (mm)
- W-60.3
- Switch State
- On/Off
- Captive Terminal Screws
- Yes
- Terminal Capacity (mm²)
- 2 × 2.5mm², 4 × 1.0mm², 1 × 4mm²
- Fixing Screws Supplied
- Yes
- Number of Switches
- 1
- Switch Type (Ways & Poles)
- Two Way
- IP Rating
- IP20
- Package Pack Type
- Printed Box
- Packed Height (mm)
- 87
- Packed Gross Weight (kg)
- 0.092
- Package Hanging
- No
- Packed Width (mm)
- 90
- Package EAN
- 5050765187633
- Packed Depth (mm)
- 43
Inner
- Inner Pack Type
- Roll Printed Box
- Inner Height (mm)
- 97
- Inner Gross Weight (kg)
- 0.827
- Inner Quantity
- 8
- Inner Width (mm)
- 187
- Inner EAN
- 5050765187954
- Inner Depth (mm)
- 202
Outer
- Outer Pack Type
- Roll Printed Box
- Outer Height (mm)
- 221
- Outer Gross Weight (kg)
- 8.748
- Outer Quantity
- 80
- Outer Width (mm)
- 191.5
- Outer CBM (cu.m)
- 0.02129
- Outer EAN
- 5050765188272
- Outer Depth (mm)
- 503
Container
- Container Quantity 20ft
- 105200
- Pallet Ti
- 12
- Container Quantity 40ft
- 210400
- Pallet Hi
- 5
- Container Quantity 40ft HC
- 240480
Warranty (years) 25
Technical Line Drawing
