| Code | Description |
|---|---|
| FBS15 | Triple pole fan isolator |
| FBS15F | 3 pole fan isolator, fused |

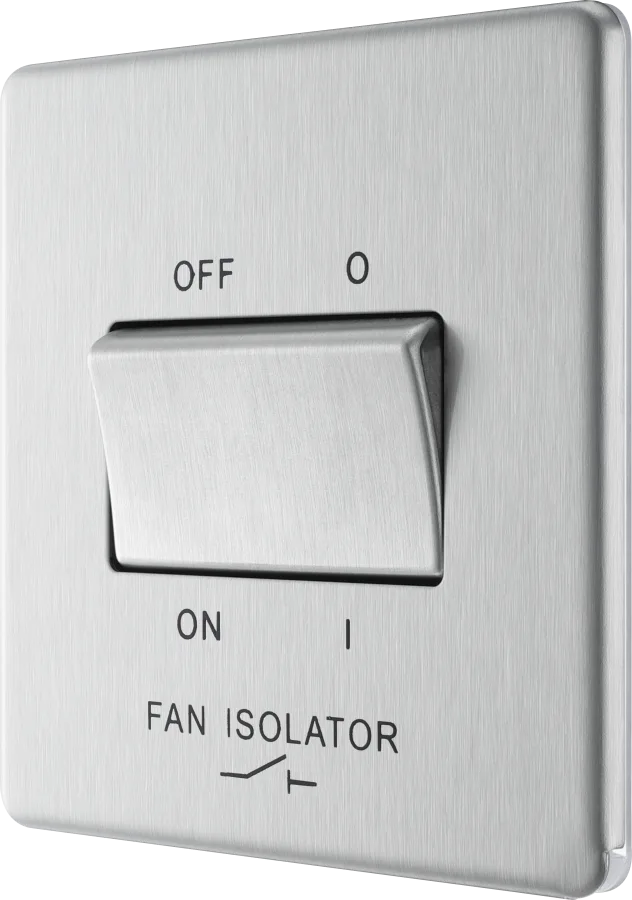

This Screwless Flat plate brushed steel finish 10A triple pole fan isolator switch from British General provides a safe and simple method of isolating mechanical fan units. This switch has a screwless flat plate with an anti-fingerprint lacquer that clips on and off and sits flush against the wall making it ideal for modern interiors.
10A Rated
Easy to install, supplied with fixing screws and installation instructions
The Fan Isolator switch has a triple ole switchin desi n, however can be used for double ole applications if required.
Triple pole switching design, however can be used for double pole applications if required
Screwless front plate clips on and off easily and has a sleek, flat profile

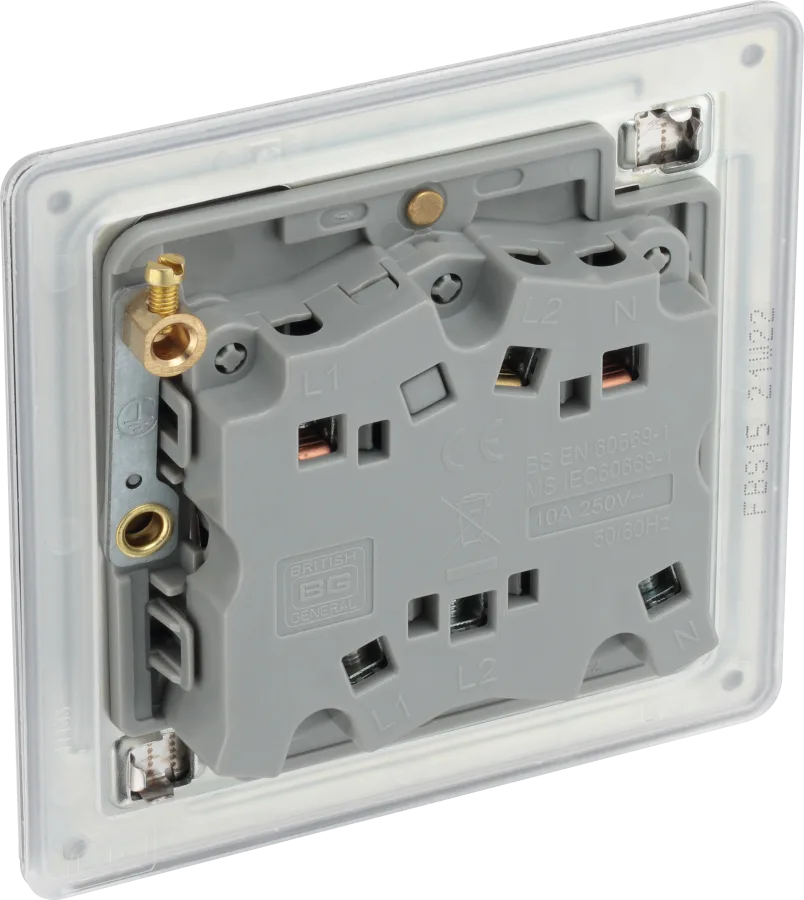

Captive, backed out terminal screws for fast installation and to prevent screw loss
Screwless front plate clips on and off easily and has a sleek, flat profile
No visible plastic around switch
Moisture control gasket, prevents tarnishing from new plaster
Minimum mounting box depth 25mm
Certified to BS60669-1
- PartNum
- FBS15-01
- Backed-out Terminal Screws
- Yes
- Anti-fingerprint Lacquer
- Yes
- Terminal Arrangement
- Angled
- Screw Caps
- No
- Switch Location Position
- Wall
- Operating Voltage (V)
- 220-240
- General Colour
- Brushed Steel
- Minimum Box Depth (mm)
- 25
- Anti-microbial Property
- No
- Terminals with Colour Coding Print
- No
- Switch Style Type
- Rocker
- Fixing Centres (mm)
- W-60.3
- Switch State
- On/Off
- Captive Terminal Screws
- Yes
- Terminal Capacity (mm²)
- 4 × 1.0mm², 4 × 2.5mm², 2 × 2.5mm², 1 × 4mm²
- Fixing Screws Supplied
- Yes
- Number of Switches
- 1
- Switch Type (Ways & Poles)
- 3 Pole
- IP Rating
- IP20
- Package Pack Type
- Eco Blister
- Packed Height (mm)
- 153
- Packed Gross Weight (kg)
- 0.15
- Package Hanging
- Yes
- Packed Width (mm)
- 120
- Package EAN
- 5050765006156
- Packed Depth (mm)
- 32
Inner
- Inner Pack Type
- Roll Printed Box
- Inner Height (mm)
- 127
- Inner Gross Weight (kg)
- 0.811
- Inner Quantity
- 5
- Inner Width (mm)
- 104
- Inner EAN
- 5050765162548
- Inner Depth (mm)
- 207
Outer
- Outer Pack Type
- Roll Printed Box
- Outer Height (mm)
- 219
- Outer Gross Weight (kg)
- 8.454
- Outer Quantity
- 50
- Outer Width (mm)
- 131.5
- Outer CBM (cu.m)
- 0.01535
- Outer EAN
- 5050765152235
- Outer Depth (mm)
- 533
Container
- Container Quantity 20ft
- 91200
- Pallet Ti
- 14
- Container Quantity 40ft
- 182400
- Pallet Hi
- 5
- Container Quantity 40ft HC
- 208450
Warranty (years) 25
Technical Line Drawing
